Design & Development of the Daimler Ferret


The Ferret was developed in 1949 as a result of the British Army's need to obtain a replacement model for its Second World War light armoured vehicles.


Due to the success of their Reconnaissance Scout Car, the "Dingo", The Daimler Fighting Vehicle Drawing Office was employed to design and manufacture the Ferret.


The Daimler FV drawing office was lead by Mr. Sid Shellard, a brilliant and talented engineer who was quietly spoken and reserved.

He was the brains behind the FV office together with his understudy Mr Ted Wilday a big, quiet, pipe-smoking chap with many years experience of FV design.

Both had gained valuable experience working on the design and production of the dingo and armoured car.   The office was staffed by a total of three draughtsmen, Cyril Miles, John Wheeler and another.


The Ferret shared many similar design features with the Dingo and Canadian Ford Lynx, but featured a larger fighting compartment and an optional small machine gun turret to accept a 30 calibre browning MG.


It was built from an all-welded monocoque steel body, making the vehicle lower but also making the drive extremely noisy inside as all the running gear was within the enclosed body with the crew.


Four wheel drive was incorporated together with "Run flat" tyres (which kept their shape even if punctured in battle thus enabling a vehicle to drive to safety).


The turret, though not fitted to all models, carried a single machine gun. Six grenade launchers fitted to the hull (three on each side) could carry smoke grenades.


The Ferret was produced between 1952 and 1971 by the UK company, Daimler but used a Rolls Royce power plant.


A total of 4,409 Ferrets, including 16 sub-models under various Mark numbers, were produced between 1952 and 1971.


There are several Marks of Ferret, including those with varying equipment, turret or no turret and armed with Swingfire anti-tank missiles. Including all the marks and experimental variants there have probably been over 60 different vehicles.


Designed and built for reconnaissance purposes, it was widely adopted by regiments in the British Army as well as Commonwealth countries throughout the period.It is fast and small enough to be used in an urban environment but strong enough to negotiate rugged terrain off road.


The Ferret is no longer in service in the British Army, although several Commonwealth countries still operate them to this day


Home -  Daimler Fighting Vehicles

The Daimler Fighting Vehicles Project


Design and Development of the Daimler Ferret & Fox

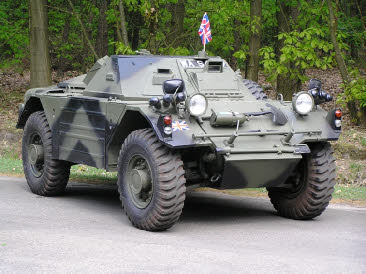

FV701 Mk 1

Liaison duties - No turret

Armament - 7.62mm or .30 cal LMG.

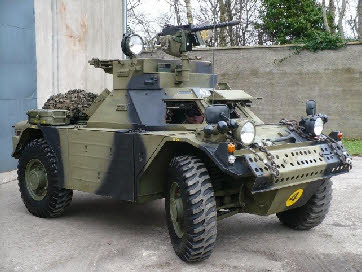

FV701 MK 1/1

Heavier armour than Mk 1 -Sealed hull for fording.

Marks 1 and 1/1 identical except for armament on Mark 1/1.


FV701 Mk 1/2

Very similar to the Mark 1/1 except for the flat faced superstructure.

Extended height roof - Crew of three

Equipped with Browing .30 or later GPMG gun

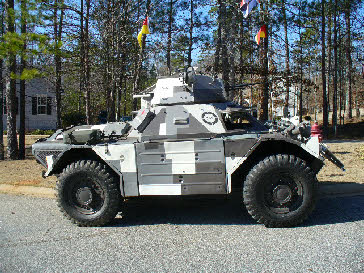

FV701 Mk 2

Mk 2/1

Turret from Alvis Saracen APC fitted

Mk 2/3 and 2/4

up armoured during production

Mk 4

was retrofitted with heavier armour


a larger bespoke turret fitted

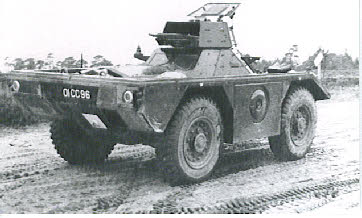

FV703 MK 2/6

Equiped with Vigilant Anti-Tank Missile System (2) on sides of turret

And 2 Spares on Side of Hull. 7.62mm OR.30 cal. LMG in turret.



Mk 4

Amphibious. Usually modified from a Mark 2/3.

It had larger wheels and tires, disc brakes and stronger suspension.


It is not currently proposed to cover within this project  the ferret or other vehicles designed by Daimler post WW2 in great detail.  It is the authors arbitrary opinion that the vehicles were not ‘proper Daimlers’ because they featured engines produced by other manufactures!


These vehicles are amply covered by some other very good web sites, the links for which are listed at the bottom of the page

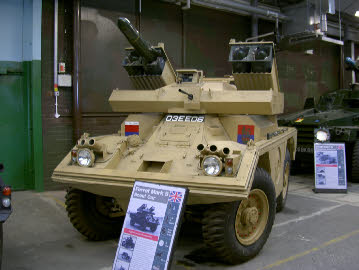

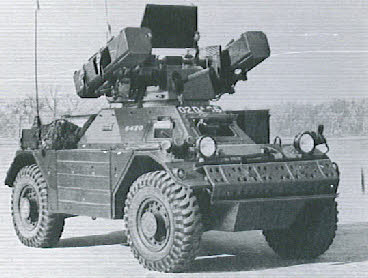

Mk 5

Based on the Mark IV "Big Wheel" Ferret.


Swingfire Anti-Tank Missile System (2) on sides of turret and 2 Spares on Side of Hull Turret

The turret was manufactured by the British Aircraft Corporation

 I ian included fitment for a 7.62mm or .30 cal. MG.
